Crussis e-Savela 1.9 (612 Wh) 17"

€1.495,00
Add to Wishlist

Range

up to 140 km

Range
Battery capacity

612 Wh (17 Ah)

Battery capacity
Number of gears

3 x 7

Number of gears



Are you looking for an e-bike for comfortable riding and trips of all kinds? Don't be limited by the profile or length of the trip? Then the e-Savela 1.9-(612 Wh) e-bike is just for you. If you still want a model with a stronger battery, take a look at the e-Savela 7.10 e-bike with a central electric motor and better accessories (fork, derailleur).



Components

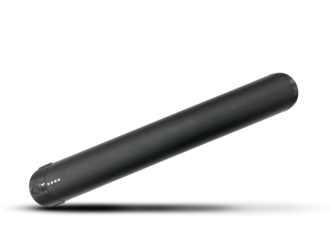

Battery

Battery

SAMSUNG 612 Wh (17 Ah)

The heart of the e-bike's power supply system is a battery with Samsung 36V / 612 Wh (17 Ah) Li-Ion cells. The battery is capable of taking the e-bike up to 140 km on a single charge. However, it always depends of course on the profile of the track and how the assistance is used.

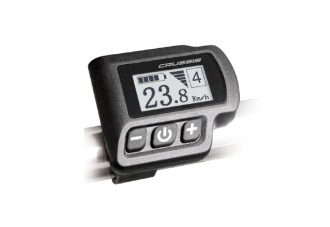

Display

Display

LCD display

The motor assistance is controlled via a clear LCD panel with a digital display located on the handlebars near the front brake lever. Simple, convenient, safe. The display itself shows not only basic information regarding the battery level and the level of assistance currently in use, but also other data related to the ride (speed, distance travelled, etc.). So you can leave your bike computer at home, you won't need it anymore.

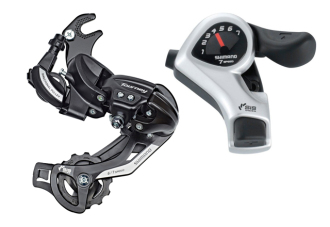

Gears and derailleur

Gears and derailleur

Shimano Tourney set

Shifting is handled by a 21-speed Shimano Tourney derailleur with 3 gears in the front and 7 in the rear. You can easily see the gear you've selected on the shift lever with indicator.

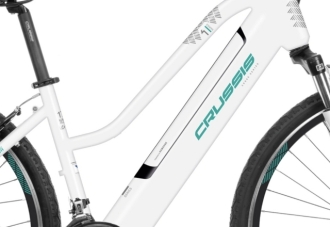

Frame

Frame

Aluminium Frame

Aluminum frame with comfortable geometry makes getting on and off the bike more comfortable. The frame has the main frame tube set really low, so you can get on the bike without any problems. The geometry of the bike also makes dismounting really quick and therefore safe. And that's not just useful when riding in the city. The frame is suitable for both men and women.

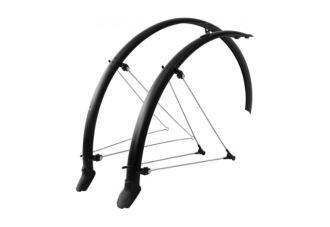

Accessories

Accessories

Bike Accessories
The trekking e-bikes are equipped with mudguards in addition to the stand, so you don't have to worry about rain. The e-bike also includes a rear rack that can be retrofitted with bags or a basket. The trekking e-bike is thus suitable for comfortable riding and trips of all kinds.

Technical specifications

PerformanceIkona minus

Motor

Bafang

battery

SAMSUNG Li-Ion 36V / 612 Wh (17 Ah)

charger

2 A (included)

Range

up to 140 km

Display

LCD panel, 5 levels of assistance

Walk assistant

yes

control unit

sinusoidal

pedal sensor

rotary (magnetic)

pedals

WELLGO, plastic with reflector

FrameIkona minus

frame

Alu 6061- frame size 17"

Fork

SR-SUNTOUR CR85-V 700C", NO LOCK

WheelsIkona minus

Wheel diameter

28"

Brakes

TEKTRO V-Brake

Rims

CRUSSIS 28", double walled, lined, 19mm

tyres

KENDA 700x40C (622-42 / 28x1 5/8), black

front hub

CRUSSIS disc, wreath bearing, 36D

rear hub

Bafang with motor

Load capacity

120 kg

ComponentsIkona minus

handlebars

CRUSSIS AL 31,8mm, width 640 mm

stem

CRUSSIS Al, 60 mm, solid

grips

CRUSSIS ergonomically shaped with sleeve

headset

Semi 1 1/8

seatpost clamp

CRUSSIS with RU Al, black 34,9

seatpost

CRUSSIS with lock, 31,6, 350 mm

GearingIkona minus

Number of gears

3 x 7

shifter

SHIMANO Tourney RD-TY500D-SGS, 7 speeds

shifting

SHIMANO Tourney SL-TX50, 21 speeds

chain

KMC Z7

cassette

BAFANG 250W (MAX 500W)

crankset

CRUSSIS 48/38/28 teeth, 170 mm

shifter

SHIMANO Tourney FD-TY512

RecommendationsIkona minus

accessories

fenders, kickstand, carrier
