Up to 157 km
Range
800 Wh (22,28 Ah)
Battery capacity
130 Nm
Motor performance
1 x 12
Number of gearse-Full AX CARB 9.12

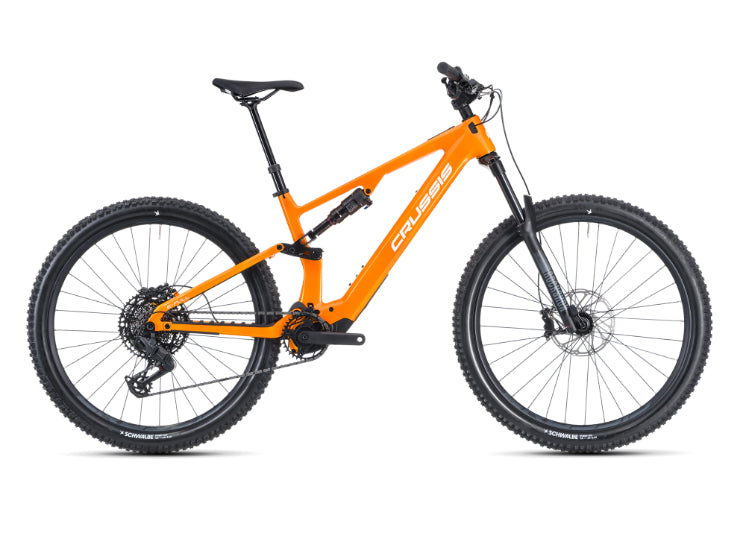

CRUSSIS e-Full AX CARB 9.12-M2S is a full-suspension mountain electric bike with a carbon frame that combines low weight, strength and sporty character with the significant support of the AVINOX drive. It is designed for technical passages, steeper descents and longer routes, where precise wheel guidance and balanced seating stand out.
The drive is provided by the most technologically advanced AVINOX system with the M2S engine, which offers power up to 1300 W, torque 130 Nm and up to 150 Nm in Boost mode for a short time. Energy is supplied by a fixed AVINOX 800 Wh battery with a range of up to 157 km. A 12A charger is included. Riding data is displayed on the 2" OLED AVINOX DP100 touchscreen display with two wireless controllers.
Control and comfort on the terrain are provided by the ROCKSHOX Recon Silver RL air fork with 150 mm of travel together with the ROCKSHOX Deluxe Select R rear shock. The suspension helps maintain traction and stability during faster riding, descents and on rugged sections.
The SRAM 70 T-Type Eagle 1×12 gearing offers precise gear changes and a wide range for climbs and faster passages. Safe deceleration is provided by the SRAM DB4 four-piston hydraulic brakes with 200 mm discs, which provide the necessary control during sporty ride.
The SCHWALBE Nobby Nic 29 × 2.60" tires ensure sure grip, stability and good support on a variety of surfaces. The equipment is complemented by a X-FUSION MANIC LC telescopic seatpost, SELLE ROYAL saddle, CRUSSIS components and USB-C.
e-Full AX CARB 9.12-M2S is a suitable choice for riders looking for a sports-oriented full-suspension e-bike with a carbon frame, a more powerful AVINOX drive and reliable equipment for more demanding off-road riding.
Components
Motor
Avinox M2S 2026
Mid-motor weighs 2.6 kg and offers a maximum 1300 W of power and 130 Nm of torque. In Boost mode, it delivers up to 150 Nm for short periods of time. It has five assist modes - Eco, Trail, Turbo, Auto and Boost, which can be set via the Avinox app. Thanks to integrated sensors, the power automatically adapts to the riding style and terrain. The compact design ensures low weight and efficient integration into modern e-bikes.
Battery
Avinox
The battery is available in two versions: 600 Wh weighing 2.87 kg and 800 Wh weighing 3.74 kg, with a voltage of 35.9 V. It offers a high energy density of up to 216 Wh/kg. Thanks to GaN 3× Fast Charging technology, the battery can be charged from 0% to 75% in 1.5 hours, with a full charge taking approximately 2 hours 25 minutes (using a 508 W charger). Even after 500 cycles, it retains up to 80% capacity. The compact integration into the frame ensures a low center of gravity and comfortable handling.
Display
Avinox DP100,
2" OLED touchscreen displey
with 2 Wireless Controllers
Display, integrated into the e-bike frame, features a 2" OLED touchscreen panel with a resolution of 326 ppi and brightness of up to 800 nits, which automatically adapts to ambient lighting. It is equipped with GPS sensors, a gyroscope, a barometer, and supports Bluetooth 5.1, ANT+, and LTE-Cat.1. It allows tracking of route, speed, cadence, and power, with 8 GB of internal memory and synchronization via the app. Control is provided by 2 wireless controllers on the handlebars - the left one for setting the assistance level and the right one for scrolling through the display.The USB-C port supports fast charging with power up to 65 W.
Suspension Fork
ROCKSHOX FS Recon
Silver RL Solo Air 29" BOOST
stroke 150 mm
Treat yourself to a comfortable ride with the ROCKSHOX FS Recon Silver RL Solo Air 29" air suspension fork. With 150 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road bumps and remains stable on the flat. For maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and worry-free ride on any terrain with this fork!
Technical specifications
Performance
Motor
Avinox M2S 2026, 1300W, 130 Nm (150 Nm in boost mode)
battery
Avinox 36V / 800 Wh
charger
12 A (included)
Range
to 157 km
Display
Avinox DP100, 2" OLED touch screen
control
Avinox wireless controller, left and right
USB port
USB-C, PD 3.0, 65 W fast charging
Walk assistant
yes
pedals
WELLGO, plastic with reflector
Frame
frame
Carbon
Fork
ROCKSHOX FS Recon Silver RL Solo Air 29" BOOST, 150 mm travel, 42 mm offset, crown lockout
rear shock absorber
ROCKSHOX DELUXE SELECT R, 210x55 mm
Wheels
Wheel diameter
29"
Rims
CRUSSIS 29" disc, double-wall, eyeleted, 30 mm
front brake
SRAM DB4, hydraulic, 4-piston, 200 mm rotor
rear brake
SRAM DB4, hydraulic, 4-piston, 200 mm rotor
tyres
SCHWALBE NOBBY NIC 29x2.60
front hub
CRUSSIS disc, industrial bearings, 32T, BOOST thru axle 15x110 mm
rear hub
CRUSSIS disc, industrial bearings, 32T, 12x148 mm thru axle
Load capacity
weight
The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.
load capacity
120 kg
Components
handlebars
CRUSSIS ALU, Ø 31,8 mm, width 780 mm, rise 30 mm, back sweep 9°, upsweep 5°
stem
CRUSSIS AL 50 mm, angle 30°, Ø 31.8 mm
grips
CRUSSIS, with sleeve, black
headset
TAPERED 1 1/8" - 1.5", ICR
saddle
SELLE ROYAL
seat post clamp
CRUSSIS AL, black Ø 34,9 mm
seat post
X-FUSION MANIC LC Ø 30,9, telescopic, travel S - 125 mm, M - 150 mm, L - 170 mm, XL - 190 mm
Gearing
Number of gears
1x12
shifter
SRAM 70 T-Type Eagle, 12 speed
shifting
SRAM 70 T-Type Eagle
chain
SRAM 70 T-Type, 12 speed
cassette
SRAM CS XS 1270 Eagle T-Type, 10-52 Z V2
converter and cranks
SRAM T-Type Eagle 34T
cranks
Samox ISIS, S - 155 mm, M - 155 mm, L - 160 mm, XL - 160 mm
