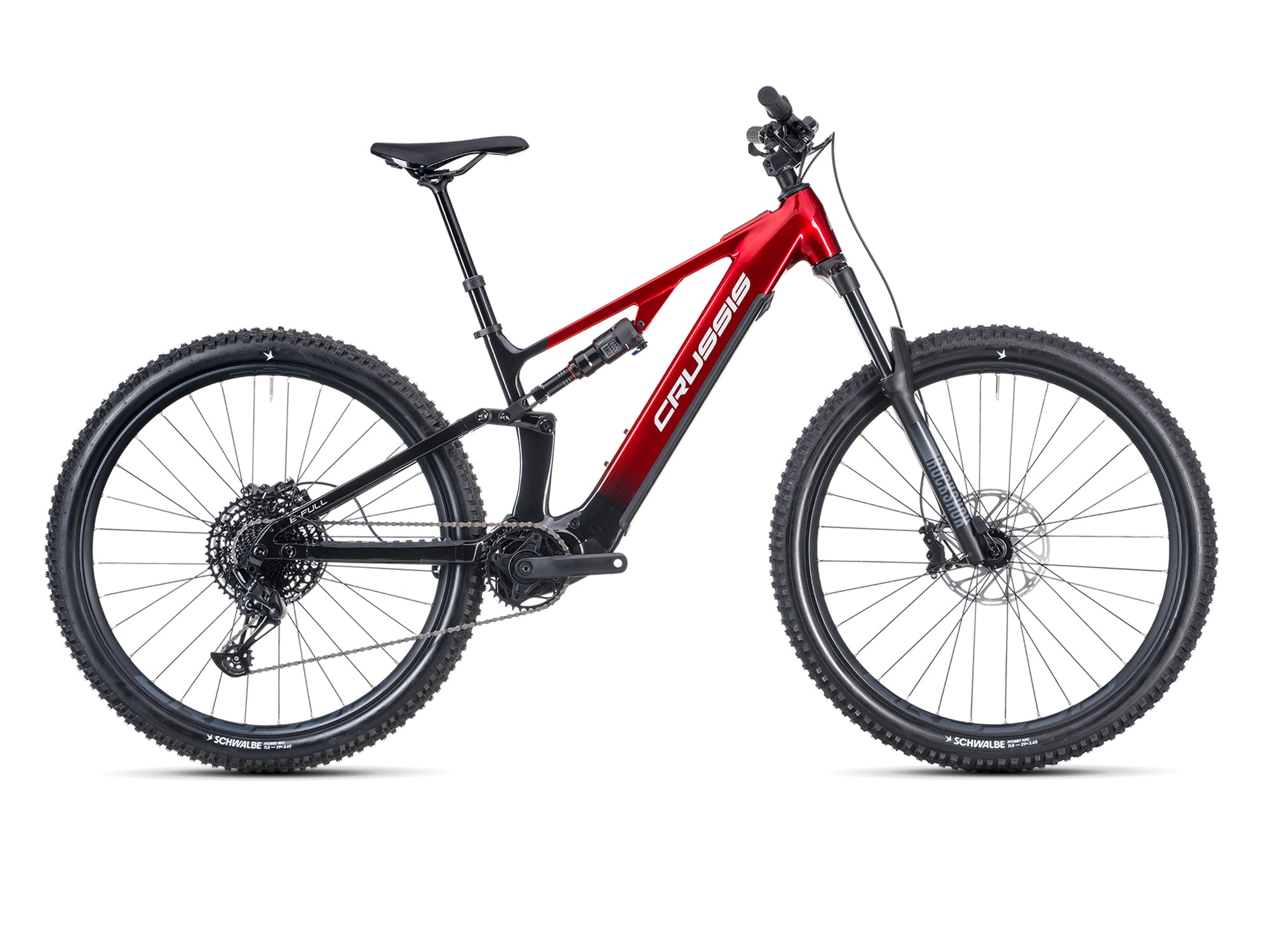

Crussis e-Full AX 9.12-M2S (2027) e-bike Avinox (800wh)

Available batteries

600 Wh to 117 km

800 Wh to 157 km

e-Full AX 9.12

CRUSSIS e-Full AX 9.12-M2S is a full-suspension mountain electric bike with an aluminum frame, designed for sporty riding, technical passages and longer off-road routes. It combines a more powerful AVINOX drive, sure suspension and reliable components for riders who want significant engine support and good handling.

The drive is provided by the most technologically advanced AVINOX system with an M2S motor, which offers power up to 1500 W, torque 130 Nm and up to 150 Nm in Boost mode for a short time. Power is supplied by a removable AVINOX 800 Wh battery with a range of up to 157 km. A 12A charger is included. Riding data is displayed on the 2" OLED AVINOX DP100 touchscreen display with two wireless controllers.

Comfort and stability are provided by the ROCKSHOX Recon Silver RL air fork with 150 mm travel together with the ROCKSHOX Deluxe Select R rear shock. This combination helps absorb bumps and maintain confident wheel control on descents and on rugged sections.

The SRAM 70 T-Type Eagle 1×12 gearing offers precise gear changes and a wide range for climbs and faster passages. Effective deceleration is provided by the SRAM DB4 four-piston hydraulic brakes with 200 mm discs, which provide the necessary control for sporty riding in terrain.

The SCHWALBE Nobby Nic 29 × 2.60" tires ensure good traction, stability and support on a variety of surfaces. The equipment is complemented by a X-FUSION MANIC LC telescopic seatpost, SELLE ROYAL saddle, CRUSSIS components and USB-C.

e-Full AX 9.12-M2S is a suitable choice for riders looking for a full-suspension e-bike with higher AVINOX system performance, comfortable suspension and reliable equipment for regular off-road riding.

Components

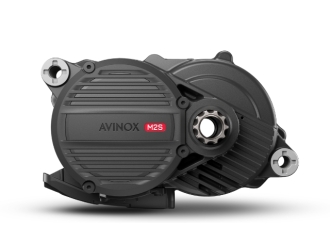

Motor

Avinox M2S 2026

Mid-motor weighs 2.6 kg and offers a maximum 1500 W of power and 130 Nm of torque. In Boost mode, it delivers up to 150 Nm for short periods of time. It has five assist modes - Eco, Trail, Turbo, Auto and Boost, which can be set via the Avinox app. Thanks to integrated sensors, the power automatically adapts to the riding style and terrain. The compact design ensures low weight and efficient integration into modern e-bikes.

Battery

Avinox
Removable

The battery is available in two versions: 600 Wh weighing 2.96 kg and 800 Wh weighing 4 kg, with a voltage of 35.9 V. It offers a high energy density of up to 200 Wh/kg. Thanks to GaN 3× Fast Charging technology, the battery can be charged from 0% to 75% in 1.5 hours, with a full charge taking approximately 2 hours 25 minutes (using a 508 W charger). Even after 500 cycles, it retains up to 80% capacity. The compact integration into the frame ensures a low center of gravity and comfortable handling.

Display

Avinox DP100,
2" OLED touchscreen displey
with 2 Wireless Controllers

Display, integrated into the e-bike frame, features a 2" OLED touchscreen panel with a resolution of 326 ppi and brightness of up to 800 nits, which automatically adapts to ambient lighting. It is equipped with GPS sensors, a gyroscope, a barometer, and supports Bluetooth 5.1, ANT+, and LTE-Cat.1. It allows tracking of route, speed, cadence, and power, with 8 GB of internal memory and synchronization via the app. Control is provided by 2 wireless controllers on the handlebars - the left one for setting the assistance level and the right one for scrolling through the display.The USB-C port supports fast charging with power up to 65 W.

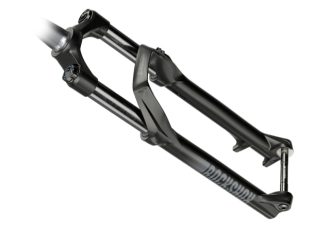

Suspension Fork

ROCKSHOX FS Recon
Silver RL Solo Air 29" BOOST
stroke 150 mm

Treat yourself to a comfortable ride with the ROCKSHOX FS Recon Silver RL Solo Air 29" air suspension fork. With 150 mm of travel and simple air pressure adjustment, the fork easily adapts to your weight and riding style. It precisely absorbs off-road bumps and remains stable on the flat. For maximum control you can simply lock the suspension directly from the fork crown. Enjoy a smooth and worry-free ride on any terrain with this fork!

Technical specifications

Performance

Motor

Avinox M2S 2026, 1500W, 130 Nm (150 Nm in boost mode)

batteries

Avinox 36V / 800 Wh

charger

12 A (included)

Range

to 157 km

Display

Avinox DP100, 2" OLED touch screen

control

Avinox wireless controller, left and right

USB port

USB-C, PD 3.0, 65 W fast charging

Walk assistant

yes

pedals

WELLGO, plastic with reflector

Frame

frame

Alu 6061 - frame size S

Fork

ROCKSHOX FS Recon Silver RL Solo Air 29" BOOST, 150 mm travel, 42 mm offset, crown lockout

rear shock absorber

ROCKSHOX DELUXE SELECT R, 210x55 mm

Wheels

Wheel diameter

29"

Rims

CRUSSIS 29" disc, double-wall, eyeleted, 30 mm

front brake

SRAM DB4, hydraulic, 4-piston, 200 mm rotor

rear brake

SRAM DB4, hydraulic, 4-piston, 200 mm rotor

tires

SCHWALBE NOBBY NIC 29x2.60

front hub

CRUSSIS disc, industrial bearings, 32T, BOOST thru axle 15x110 mm

rear hub

CRUSSIS disc, industrial bearings, 32T, 12x148 mm thru axle

Load capacity

weight

The weighing of electric bikes is not done according to any established standard that all manufacturers adhere to. Some brands quote artificially reduced weights. To find out the weight of a bike, you need to have it weighed in-store.

load capacity

120 kg kg

Components

handlebars

CRUSSIS ALU, Ø 31,8 mm, width 780 mm, rise 30 mm, back sweep 9°, upsweep 5°

stem

CRUSSIS AL 50 mm, angle 30°, Ø 31.8 mm

grips

CRUSSIS, with sleeve, black

head composition

TAPERED 1 1/8" - 1.5", ICR

seat
