Frame set

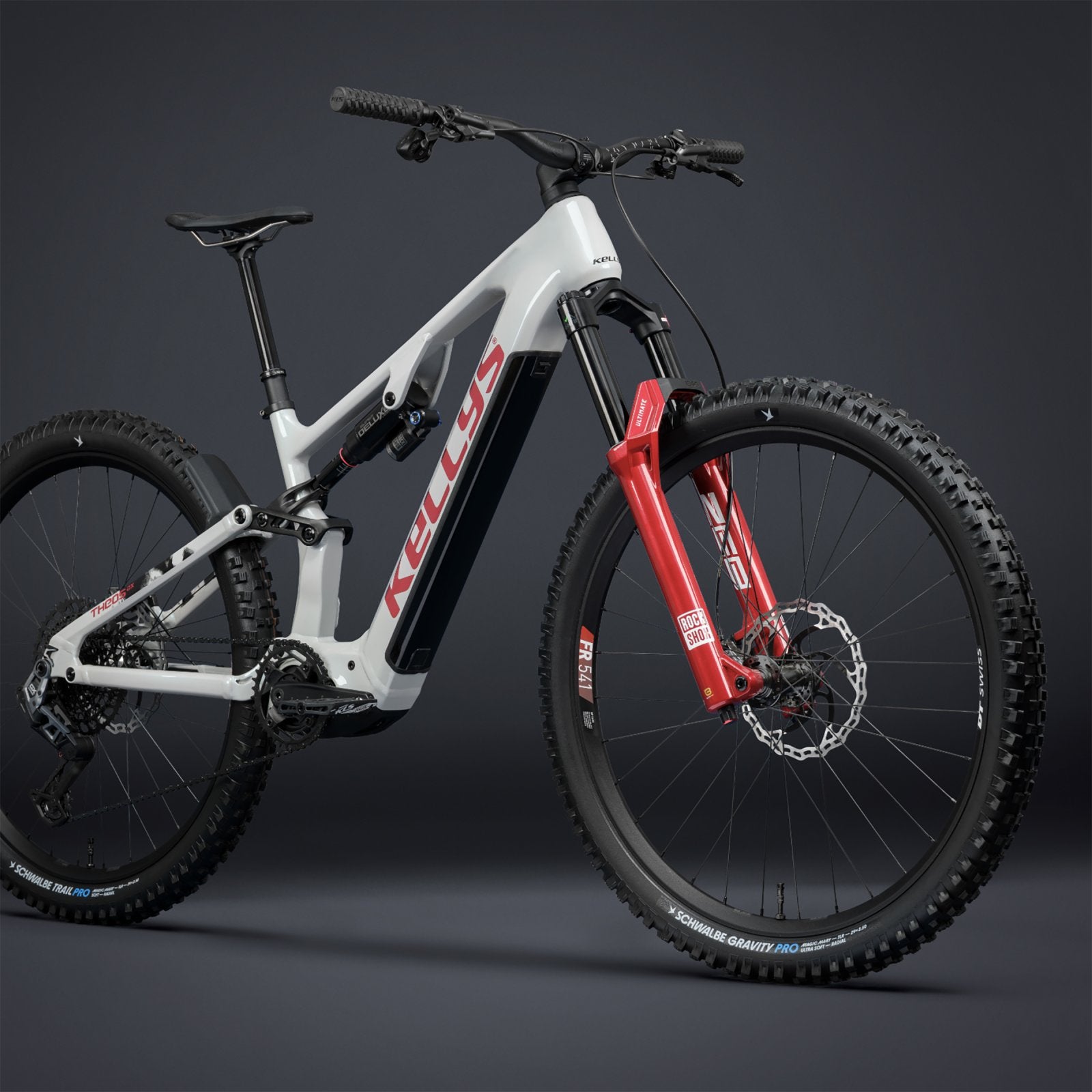

frameKELLYS THEOS AX-series - FLT welded technology, Al 6061-T6 / Horst-Link four-bar suspension system, 160 mm rear travel, 1.5" tapered HT, post mount 180 mm, 29" wheelset, 12x148 mm Boost thru axle
forkROCK SHOX Zeb Ultimate (29") Boost, 170 mm, DebonAir+ / Charger 3.1 RC2 damper
rear shockROCK SHOX Super Deluxe Select+, DebonAir+ / RCT damper (205x65 mm)
frame sizeS / M / L / XL
Drive

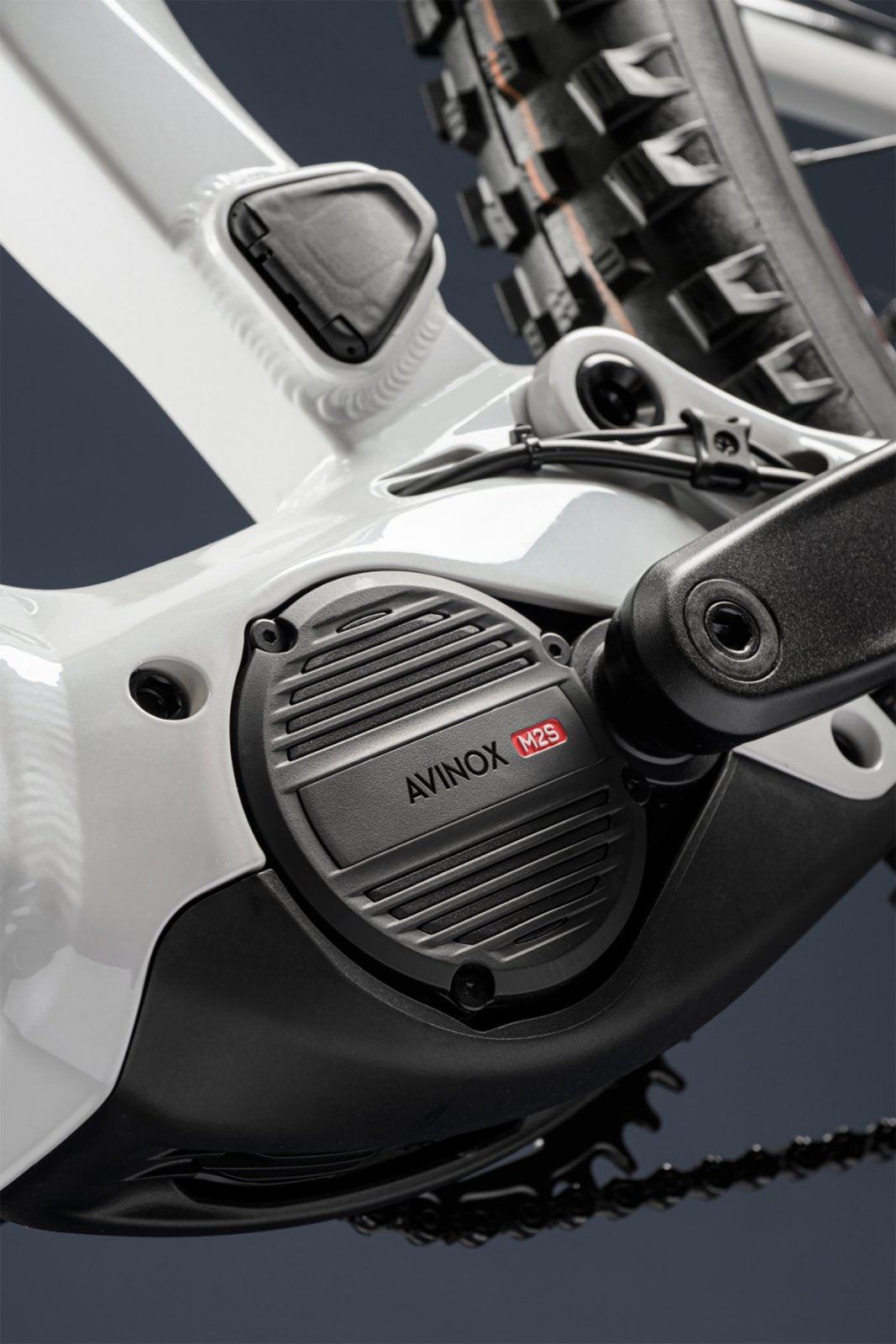

motorAVINOX M2S - Compact, High-Torque Drive Unit max 130 Nm / Boost Mode 150 Nm
batteryAVINOX Li-ion internal removable 800 Wh / 22.3 Ah, weight 3.74 kg
switch unitAVINOX Wireless Controller BC100, Bluetooth® 5.1 connectivity

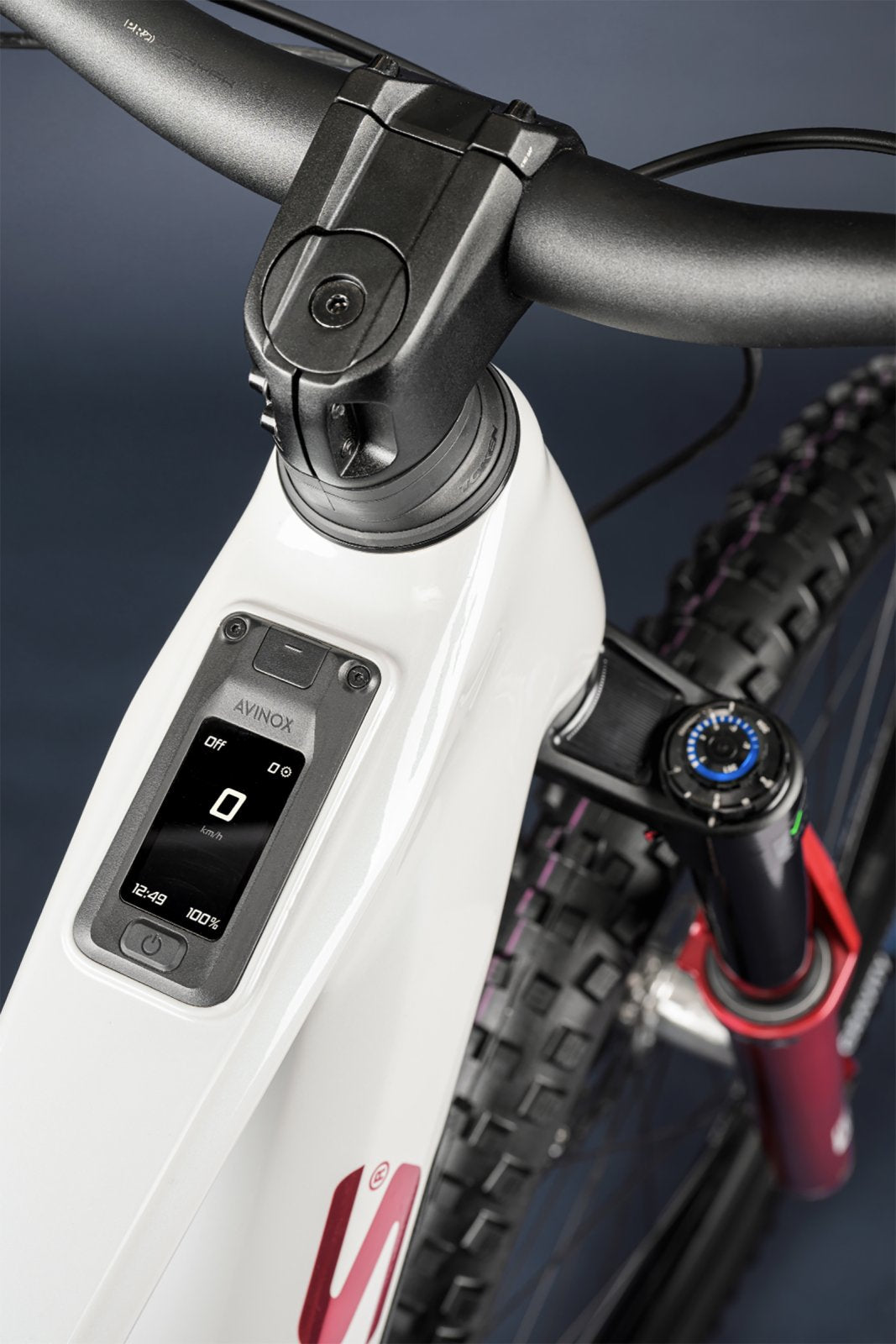

computer displayAVINOX DP100 Flat, OLED full-color Control Display
cranksetAVINOX - length 165 mm / chainring SRAM Eagle Transmission Direct Mount (36T)

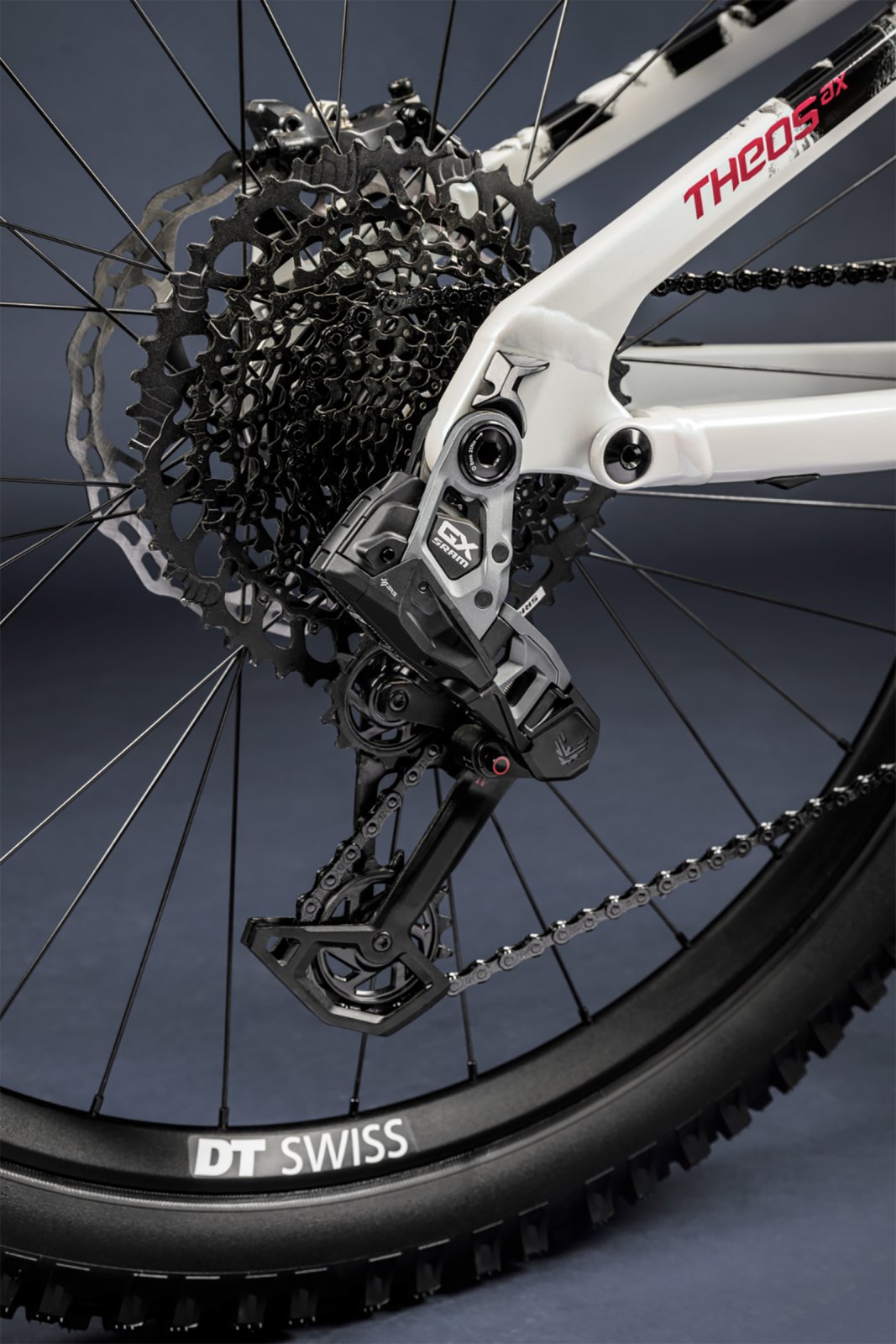

rear derailleurSRAM GX Eagle AXS T-Type Transmission
shiftersSRAM AXS POD R Controller
speed12
cassette sprocketSRAM XS-1270 Eagle T-Type Transmission (10-52T)
chainSRAM Eagle 70 T-Type Transmission Flattop
Brakes
brakesSHIMANO Deore XT M8220 Hydraulic Disc 4-piston
brake leversSHIMANO Deore XT BL-M8200
brake rotorsGALFER Fixed Disc Wave® DB006W2, 200 mm front / 200 mm rear
Wheels
hubsNOVATEC D791SB-B15 (28 holes) front / NOVATEC D462SB-SL-B12-S3S HG, 5x sealed bearing (32 holes) rear, 6-bolt Disc
rimsDT SWISS FR 541 Disc 622x30 (28 holes) front / DT SWISS FR 541 622x30 (32 holes) rear
spokesstainless steel black
thru axle15x110 mm front / 12x181 mm rear
front tyreSCHWALBE Magic Mary Gravity Pro Radial 63-622 (29"x2.50) TLR, Ultra Soft, folding
rear tyreSCHWALBE Magic Mary Trail Pro Radial 63-622 (29"x2.50) TLR, Soft, folding
Cockpit
head partsTOKEN A-BOX Aero integrated cable routing system
stemTranzX (internal cable routing compatible with A-BOX head set) - diam 28.6 mm / bar bore 35 mm / 8°/ length 45 mm
handlebarKLS Alm/En 70 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
gripsKLS Poison Lockon
seat postKS Rage-i 2.0 Remote Telescopic - diam 30.9 mm / length 429 mm, travel 150 mm (S - M) / length 501 mm, travel 180 mm (L - XL)
saddlefi’zi:k Terra Ridon X5
