The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories. The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.

Frame: Lite - Hydroformed triple butted 6066 aluminium with smooth welding. Tapered head tube, Pressfit BB Standard, 142 x 12mm axle standard. Max tyre size 700 x 28c

Fork: Scultura CF2 Disc; Full carbon; tapered steerer. Max tyre size: 700 x 28c

Headset: Merida M2339 Neck

Stem: Merida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)

Handlebar: Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL)

Grip: Merida Road Comp

Brake Type: Mechanical disc

Front Brake: Promax DSK-330R mechanical disc brake caliper with Promax 160G 160mm rotor

Rear Brake: Promax DSK-330R mechanical disc brake caliper with Promax 160G 160mm rotor

Tyres: Maxxis Pursuer; 700 x 25C; Kevlar bead; folding

Wheel Size: 700c

Rim: Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium

Front Hub: Joytech D981SB; 100x12mm; 28 Spokes, 6 bolt

Rear Hub: Joytech D982TSE-R; 142x12mm; 28 spokes; 6 bolt

Speeds: 18

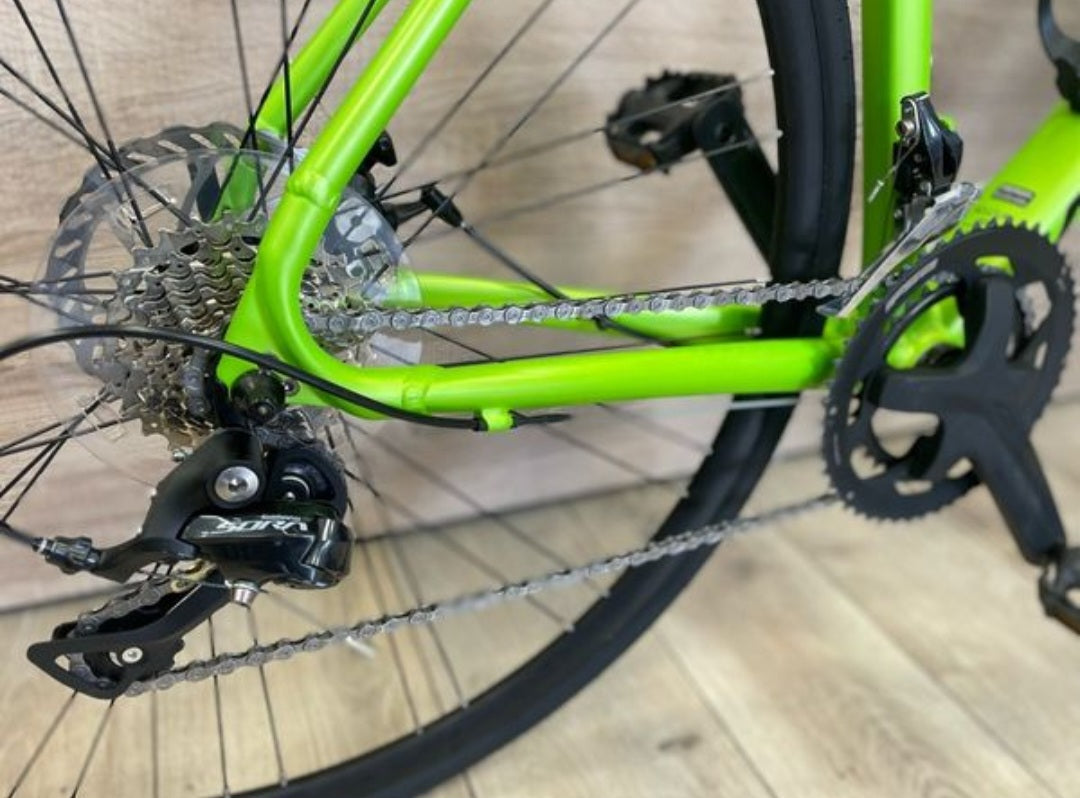

Front Derailleur: Shimano Sora

Rear Derailleur: Shimano Sora; GS

Shift Levers: Shimano Sora

Chain: KMC M99

Cassette: Microshift CS-9S; 11-28 teeth; 9 speed

Chainset: FSA Omega; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL)

Bottom Bracket: FSA BB-AL86/Ø19

Saddle: Merida Comp SL with V-mount

Seat Post: Merida Comp CC; aluminium; 27.2mm diameter; 5mm lay back
